Six shuttle High Speed Circular Loom suitable for wider width packaging applications, having maximum tubular width of 1300 mm.(52 inch.) Low maintenance because of only 36 segments.
| MODEL NO :- EM 6130 |
||
| Description:- | ||
| Working width Double flat:- |
( Min. / Max.) |
560/1300 mm |
| Shuttles:- | Nos. of Shuttles |
6 |
| Tube Diameter |
35 mm |
|
| Tube Length |
218 mm |
|
| Bobbin Diameter |
110 mm |
|
| Traverse Length |
200 mm |
|
| Warp Bobbin:- |
Tube Diameter |
35 mm |
| Tube Length |
218 mm |
|
| Bobbin Diameter |
130 mm |
|
| Traverse Length |
200 mm |
|
| Creel Capacity:- |
Bobbin /Machine |
1080 |
| Special Version Possible |
1152 | |
Fabric Surface Winder |
1390 mm |
|
| Picks / Minute:- |
( Min./Max.) |
540 / 660 |
| R.P.M.:- | ( Min./Max.) |
90 / 110 |
| Web Density:- |
20-75/10 cm |
|

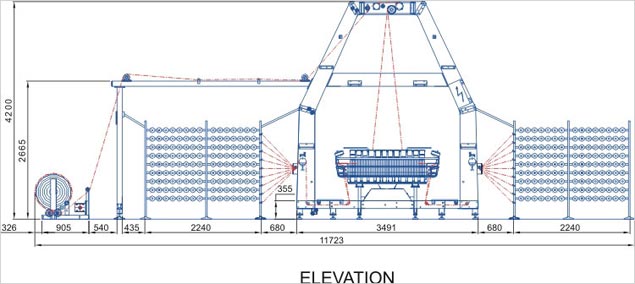

| Requirement of space:- |
Length | 11723 mm |
| Width | 3050 mm |
|
| Height | 4200 mm |
|
| Electrical:- | Phase/Vol/ hz |
3 / 415 / 50 |
| Main Motor |
5.5 KW |
|
| Winder Motor |
0.37 KW |
|
